Xteink X3, the small one that rides on a phone

What the device is

The X3 is Xteink’s 3.7″ e-ink reader, the smallest of the line. Same chip as the plain X4, same pinout, a different panel and a different set of chips on the I2C bus. No frontlight, no touch layer, physical buttons, and no USB socket: data comes out on the pogo pins through the dongle in the box.

Panel

792×528 native, which the renderer drives as 528×792 portrait. 3.7″, about 257 ppi against the X4’s 218

Controller

a UC8253 or a UC8279. The firmware asks the panel at boot; nobody has read which one our unit has

Frontlight

none. A daylight device

Touch

none. Physical buttons only

SoC

ESP32-C3 rev v0.4, single core at 160 MHz, WiFi and Bluetooth 5 LE

Memory

245 kB of usable heap at the home screen, 16 MB flash

On the I2C bus

a BQ27220 fuel gauge, a clock and an IMU. The X4 has none of them

Storage

microSD, for map tiles

USB

no socket. Data comes out on the pogo pins, and they do carry data

Chip, revision, flash size and the USB identity were read off our own unit over the cable, along with the 16 MB stock image we took before writing anything of ours. Panel geometry is the device’s own framebuffer: a screenshot comes back 52,272 bytes, which is 528 × 792 ÷ 8 exactly. Diagonal and density are the vendor’s numbers. Battery capacity, weight and price we have not measured.

One build, two readers

The X4 and the X3 are the same machine with a different screen on it, so they run the same binary. The firmware works out which one it is on at boot: it probes for the chips only an X3 carries, twice, scores the hits, and picks its profile from that. No build flag, no separate download.

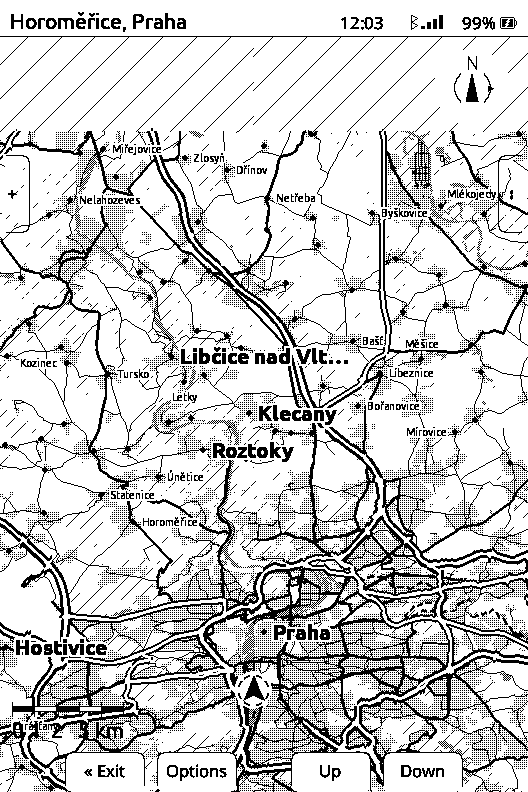

On the real device this printed Hardware detect: X3 with no help from us, first try. The part worth more than the log line is what followed it: the position marker landed 4 px from the centre of a 528 px panel. Until that day the code that scales the marker to the screen had only ever been checked in a simulator, and the number it replaced would have put the marker 34 px off centre here.

What we measured on it

One session, 9 September 2026, on a development build. Everything here came off the device’s own log or its own framebuffer.

The heap line is the one that decides things. Starting the Bluetooth stack alone costs 57.1 kB here, and a render runs with 33.7 kB free. That is the budget every memory rule in this project was written against, and it is why the X4 Pro’s 172 kB felt like a different product rather than a faster one.

The Bluetooth number is a constraint on the product, not a detail. At 6 kB/s a 500 kB tile takes over a minute and a half, and that dominated the whole test session. Tiles belong on the card before a trip; the radio is for the ones you did not think to bring.

One render is one sample. It says the order of magnitude and nothing about how much it varies.

The map also fetched a missing tile by itself: the device asked for it over Bluetooth, a stand-in for the phone fetched it and pushed it back, and the frame redrew with real data. The X3 has no receiver of its own, so the position came the same way. That is the arrangement this whole product describes, seen working on the smallest screen we own.

What it gets wrong on this panel

Every layout number in the firmware was hand-tuned against a 480×800 X4. This panel is 528×792, and three things are drawn in the wrong place because of it. None of them is visible on an X4, and all three are still there.

• The button hints run off the bottom edge. Measured on the framebuffer above: ink reaches row 791 of 791, so the boxes have no bottom border at all, and on the map screen it reaches columns 0 and 527 as well, which hangs the side boxes over both edges. The X3 is not missing from that code, it has its own set of positions. They are simply the wrong numbers.
• The scale bar draws on top of the place name. Bottom left, the bar’s ticks cross the letters and the distance sits under them, unreadable.
• The north arrow overlaps the right hint box. Same cause, same 528×792 layout.

The deeper fix is not six new numbers. Six separate things in the firmware ask “which device am I” when what they mean is “how big is this screen”, and a third panel size is what made that expensive.

Why it may be the city walker’s device

The X3 is sold to ride on the back of a phone, on a magnetic mount. For most of what we build that is irrelevant. For walking a city it may be the whole answer.

The position comes from the phone over Bluetooth, and every description of that arrangement assumes the phone is in a pocket, which is its most awkward property. Stuck to the phone it is one object in one hand, the radio link is at zero range, and the thing that supplies the position is the thing the map is attached to. Two costs, both real: this is the smallest panel we own, which is exactly where city label density is worst, and there is no light behind the glass, while sightseeing carries on after dark.

Whether that magnetic mount is a vendor accessory or an ordinary third-party pad, and what it weighs, we have not established.

What is still open

The X3 column of our own acceptance checklist is mostly empty, and that list is what decides whether a device gets called supported. Until it is walked with the device’s own buttons, rather than with commands over the cable, this page will keep saying not yet.

• The panel controller of this unit. A UC8253 or a UC8279, and the boot log that would say which was captured too late to hold the line.
• The fuel gauge. Unread, and it is the only instrument this project has for measuring its own power draw from inside a sealed device.
• The panel in direct sun. A refresh under strong daylight can come back blank on the X4’s panel. This is a different panel, so it may behave better or worse, and nobody has run the test.
• Grey levels, more than one zoom, a long session without a restart. All three are checklist rows and all three are untried here.

Where the firmware is

The same three files as the plain X4, because it is the same build. Nothing X3-specific to download.

• In the browser, over USB: the flasher page. Desktop Chrome, Edge or Opera. It takes a 16 MB backup of Xteink’s own firmware before it writes anything, and on this device that backup is the only way back.
• The release itself: explorink-v0.2.0-alpha on GitHub, with checksums next to the files.
• With esptool: the install page has the three offsets and the command. Plug the pogo dongle in first: with no USB socket on the device, without it the computer finds nothing at all.

Two things this download is not. It is not the build our X3 ran: that was a later development build, and the published one has never been on a real X4 or a real X3. And it is alpha, replacing the reader’s original firmware, which no vendor download will put back.

Where it sits next to the others

The plain X4 is where most of our numbers came from, and it was discontinued in August 2026. The X4 Pro is the device we design against, because it has a light behind the glass. The X3 is the one that is still on sale, still on our desk, and still the smallest screen anyone would try this on. The hardware page has the comparison, the X4 findings have the panel and refresh numbers this device inherits, and the X4 Pro page has the other end of the line.
